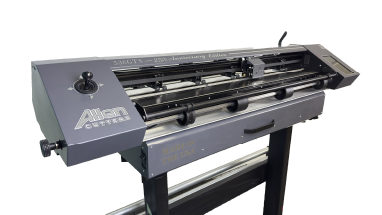

The 25th Anniversary of the 536
Don't settle for second best. Cut monument rubber, vinyl and more with the most versatile monument cutter in the industry.
Speed Up Your Set Up Time For Increased Productivity
- Graphic user interface makes getting off the ground fast and easy
- Compatible with the industry’s leading design and layout software programs
- Easily access hardware with the chassis door slide tray.
- Use Draw Mode on rolled paper to cut patterns for shaped stones. Switch to the friction mode to cut, draw, or pounce your other materials.
- Microsoft OS compatible (version7 or higher).
- WI-FI CONNECTIVITY Equipped with an operating range up to 80 feet
- NEXT-GEN SERVO MOTORS 67% more torque for a faster, more powerful cut
Built To Be Better Than The Rest
- Utilizes both a friction-feed drive with eight pinch wheels and a four-point sprocket drive working in tandem to ensure accurate tracking of media.
- Dual drive system allows you to easily adjust your media sizes.
- Heavy-duty analog joystick allows precise movement.
- All Allen Monument cutting systems come with a two-year warranty.
- DUAL PINCH ARMS Four additional points of engagement for a total of 8 pinch wheels
- 100% designed and manufactured in the USA.
Precision Monument Cutting Technology
High-Performance For Your Toughest Work
iTech 25 Anniversary 536 is equipped with our exclusive Gold Touch II cutting head, featuring an extraordinary 100 steps of digitally controlled force, adjustable from 5 grams up to 550 grams – the most versatile in the industry.
Cut Exactly The Design You Want
Features “Tangential Emulation,” a cutter software feature that allows the iTech 25th Anniversary 536 to cut flawless V-lines and perfectly square corners in even the heaviest of materials.
The 25th Anniversary of the 536
Get started confidently knowing your investment is protected with a two-year warranty program - just one more reason to choose this top choice monument cutter.
- Monument Engraving
- Stone Engraving
iTech 25th Anniversary 536 Specifications
Maximum Frame Size
Media width less 1 inch (2.5cm) x 150 feet
Cutting Technology
Swivel knife; Tangential Emulation
Memory Buffer
1 MB
Programmable Cut Speed
Selectable in 100 Steps
Acceleration
Selectable, 0.25 to 1G
Cutting Force
Selectable, 5.5 to 550 grams. Adjustable in increments of 100 steps
Knife Blades
45 Degree or 60 Degree
Pens
Roller Ball: Fiber Tip (HP Style)
Command Set
HPGL
Interfaces
High-Speed USB/Ethernet/WI-FI
Media Types/Processed
Vinyl, screen print film, reflective, stencil, mask, magnetic, window tint, capton, etc.
Deluxe Stand
Steel construction; Media roll holder; Media catch baskets; casters.
Remote Panel
System set-up, control & diagnostics
Operating Temperature
32 to 117 F | 0 to 40 C
Operating Humidity
Relative, 5% to 95%
Physical Dimensions
36” Cutter 55” x 17” x 13” (140x43x33cm)
Weight
36” Cutter 65lbs, (29.3 kg)
Media Width
36” Cutter 2.5 to 36 inches (6 to 91cm)
